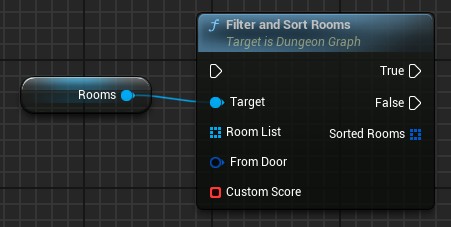

Filter and Sort Rooms

The plugin v3.6 introduces a new node, and an extremely useful one.

Explanation

As its name implies, its purpose is to filter and sort a list of room data.

Each element in the output array is an union of a room data and one of its door. This is called a Room Candidate.
Thus, one room data in the input array may appear several times in the output array, if multiple doors of the room allows it to be placed.

A room is filtered out (not included in the output) if it can't be placed in the dungeon (e.g. no compatible door, or overlapping with existing rooms).

If a room candidate can be placed, a score is computed.
By default, the room size and the door alignments are used to compute this score, but you can create a custom function to compute this score (see next section).

The output array is sorted using this score, so the highest score is the first element of the array.

Custom Score Function

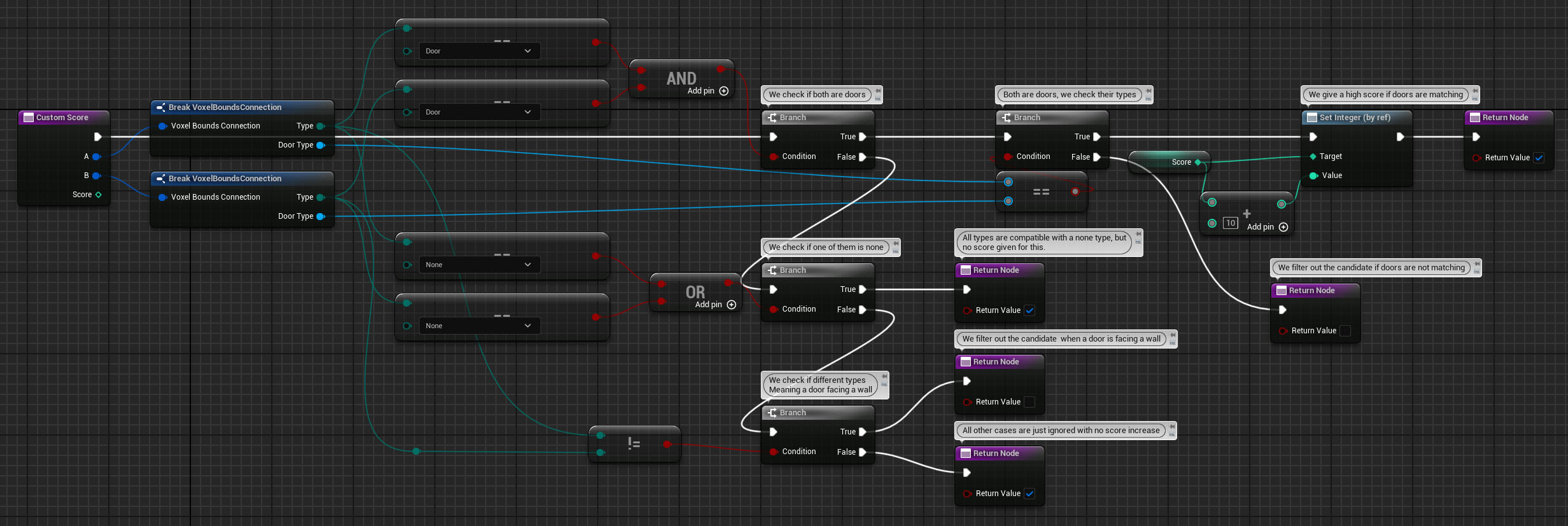

Here is a simple example for a custom score function.

This is called for each side of each cell of the room candidate.

You return True if the room candidate is still valid, or False if you want to discard the room candidate from the output array.

You can add, subtract or set the value of the Score input depending on the cases.

There is currently 3 types of cell side:

• None: the cell is not occupied by a room.
• Wall: the cell is occupied by a room but no door is defined on this side.
• Door: the cell is occupied by a room, and a door is defined on this side.

In the case of a Door side type, the Door Type field is set to the Door Type asset (or none if using the default door type).

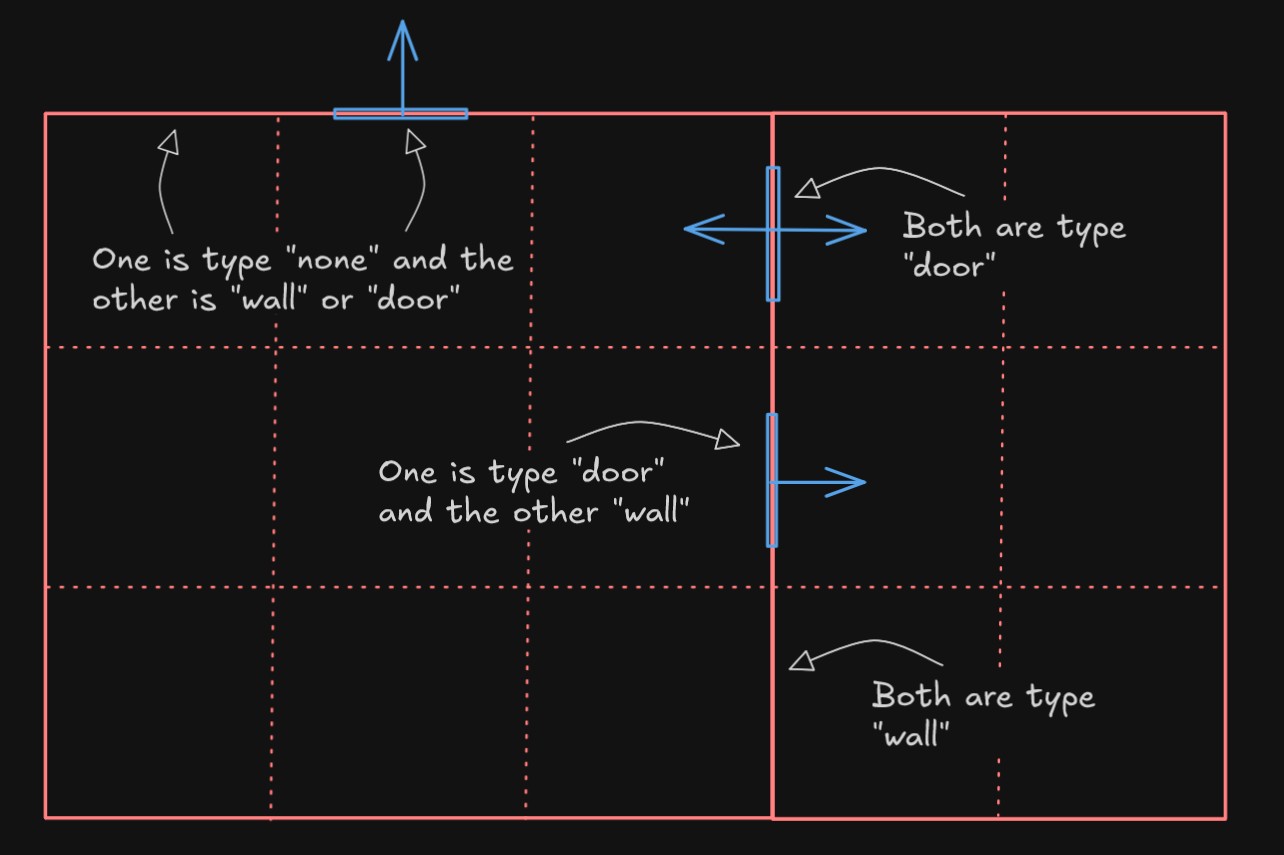

See this drawing below to better understand the different cases you can encounter:
